Model Context Protocol (MCP) enables AI Agents to invoke tools and services in a controlled manner. You can configure Zortex to be an MCP client and allow your Agents to retrieve data or perform operations.
Zortex can also act as an MCP server! See the Zortex MCP Server guide to connect Claude, Cursor, and other AI tools to your Zortex knowledge base.

​
MCP in Zortex

1

Navigate to the Actions Dashboard

Click your user profile icon and select Admin Panel and select the MCP Actions tab in the sidebar.MCP Actions dashboard in Zortex Admin Panel
2

Add an MCP Server to Zortex

Click the Add MCP Server button and fill out the following fields:Add MCP Server dialog in Zortex Admin Panel
  • Server Name — A human-readable name for this MCP server. Typically the name of the service you’re connecting to (e.g. “Slack”, “Jira”).
  • Description — Any additional information that helps identify the server. Useful for distinguishing multiple configured MCP server connections that talk to the same service.
  • MCP Server URL — The URL of the MCP server, which must be reachable from your Zortex instance. Most URLs end in /mcp, or /sse for older servers.
  • Managed MCP server: The URL is typically found in the provider’s documentation describing how to connect.
  • Self-hosted MCP server: You’ll need to run your server in HTTP transport mode — Zortex doesn’t currently support connecting via stdio. If the server is running on the same machine as Zortex, use http://127.0.0.1:<port>. Otherwise, use the URL and port the server is exposed at.
When you click Add Server, Zortex will create the server in a disconnected state. The next steps will set up authentication (if any) and validate that Zortex can connect to it.
3

Configure and Authenticate with an MCP Server

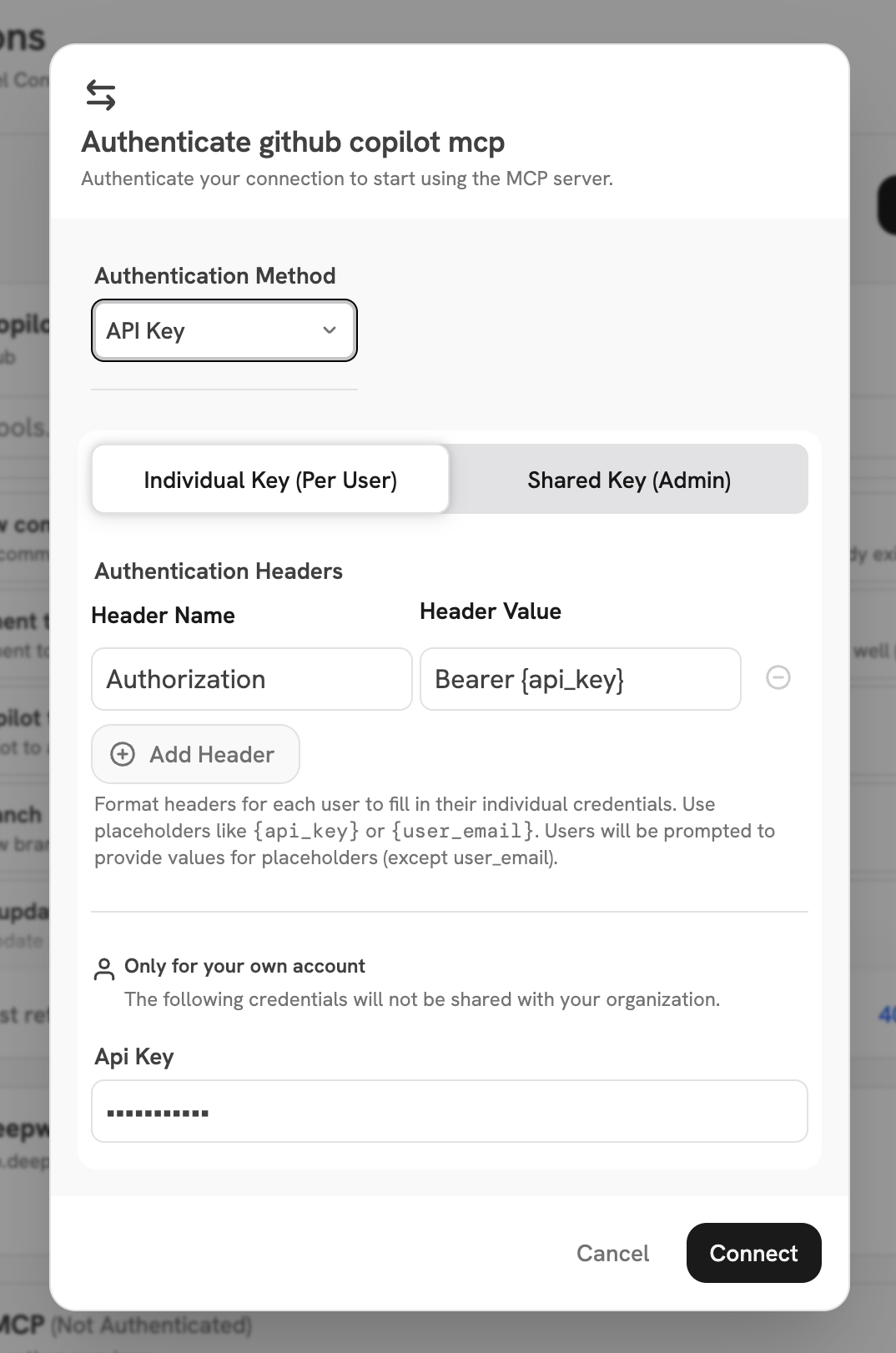

MCP server authentication configuration in ZortexZortex supports four authentication types when connecting to an MCP server:

​
No Auth

Use this when your MCP server is unprotected. Typically only used for testing when connecting to a local MCP server on a local Zortex instance, but may be useful if the server is deployed inside a VPC and you want all users to have the same unrestricted access to it.

​
API Key

The server is protected by API key authentication, typically using the Authorization: Bearer <token> format. There are two sub-modes:
  • Shared Key — The admin configures a single API key used for all user requests. Similar to No Auth in that users won’t need any additional configuration and will all get the same level of access (whatever is provided by the API key you choose).
  • Individual Key — Users authenticate in the chat flow by providing their own API key(s) to connect to the server. Useful when you want users to have differing access to an external service by identity. This mode is also the most configurable — Zortex allows the admin to specify arbitrary header patterns to send to the MCP server.

​
OAuth

Many modern MCP servers support OAuth authentication to give users access to tools and data using the same login flow they use when manually accessing the service.Most OAuth-enabled MCP servers also support DCR (Dynamic Client Registration). If yours doesn’t, you will need to create an OAuth App in the IdP (Identity Provider) the MCP server uses and provide Zortex with the generated Client ID and Client Secret. When DCR is supported, no further configuration is necessary — clicking Connect will send the admin through the OAuth flow to confirm that the server connection works.

​
Pass-Through OAuth

Only available when your Zortex instance is configured to authenticate via OAuth. In this mode, Zortex passes the user’s OAuth access token through as an Authorization: Bearer header to the MCP server. This is most often useful if your organization hosts its own MCP servers and would rather not require users to authenticate again after already going through the OAuth flow to log in to Zortex.
Clicking Connect will validate that Zortex can reach the MCP server using the provided authentication method. The MCP Actions dashboard then lets the admin list the tools available from the MCP server and select which subset of tools should be made available for use in Agents across the organization.
